2018-2023 Mustang Assembled Coyote Oil Pump and Crank Sprocket kit
2018-2023 Mustang Assembled Coyote Oil Pump and Crank Sprocket kit
2018-2023 Mustang Assembled Coyote Oil Pump and Crank Sprocket kit

2018-2023 Mustang Assembled Coyote Oil Pump and Crank Sprocket kit

Regular price$359.00
/

Installation
  • Shipping costs and lead times vary

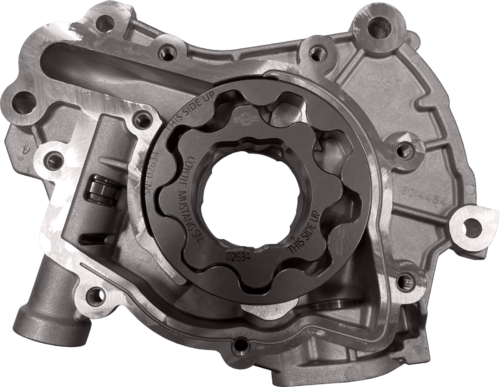

The Coyote Motor oil pump starts with the Ford OEM housing but is assembled with our billet oil pump gear. This pump also comes with the option for a high-flow billet backplate for those running over 7000 RPM consistently.

All assembled billet pumps undergo the following:

  1. Pump is thoroughly taken apart, and all parts undergo ultrasonic cleaning, air blast, and hand inspection.
  2. Pump is hand de-burred.

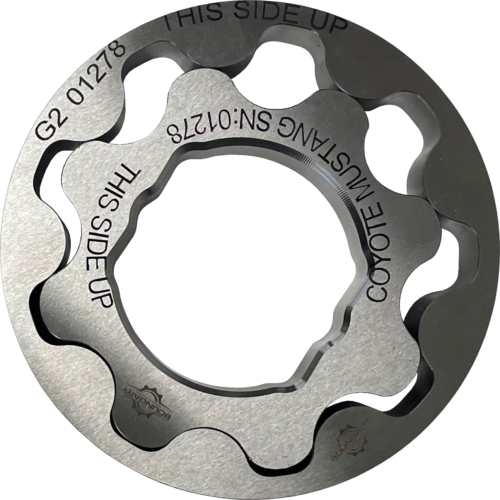

  3. Our industry-leading mirror-finished gear set is used
  4. Stainless Torx heads replace the stock fasteners
  5. All fasteners are torqued to spec
  6. Loctite applied to fasteners to prevent back out or loosening
  7. Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
  8. Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
  9. Parts are blue-printed and issued with a specification sheet.

Part Number: CM-S1-R2 fits:

  • Ford Shelby GT350  2015-Present
  • MUSTANG 2018-2023
  • F150 2018-2020

The Coyote crankshaft timing sprocket with grip surface improves the durability of the crankshaft snout and keyway by limiting the movement of the harmonic balancer.

Billet Crank Sprockets from Boundary follows the same heritage as our oil pump gears, manufactured 100% in-house with US-sourced materials. These sprockets start with Chromoly steel that is ten times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.

  • All sprockets heat treated to maximum hardness while maintaining toughness
  • Precision CNC machined and broached for snug accurate fit
  • Dimensions are checked after machining and after heat treatment for a guaranteed fit.
  • 80% more cross-section versus OEM at the keyway
  • Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest-strength sprocket on the market.
  • High finish reduces friction and chain vibration
  • New tooth geometry strengthens teeth and keyway

Part Number CM-SP-15-GRIP FITS:

  • ALL FORD COYOTE 2015-UP
