Coyote Cast Iron Race Block M-6010-M50X
- Shipping costs and lead times vary

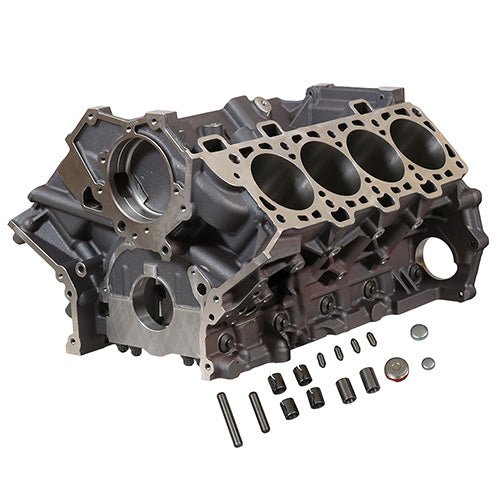

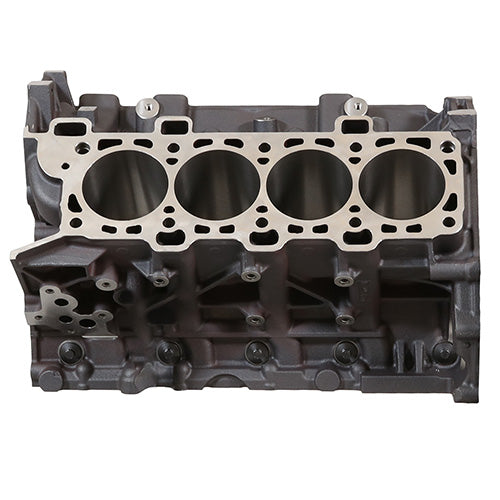

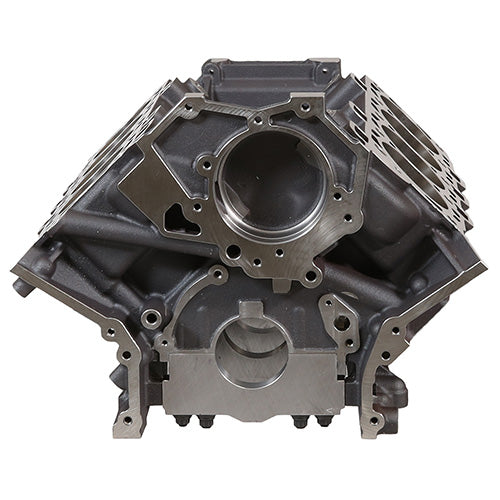

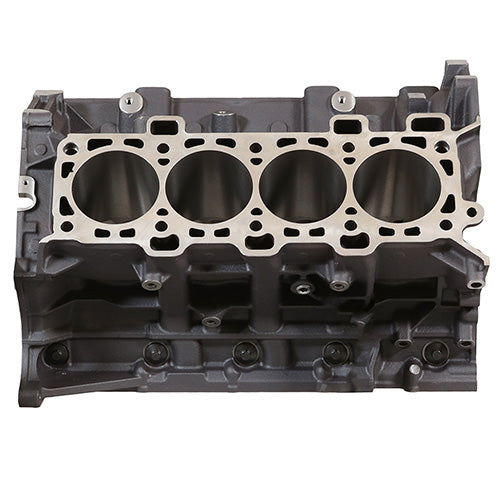

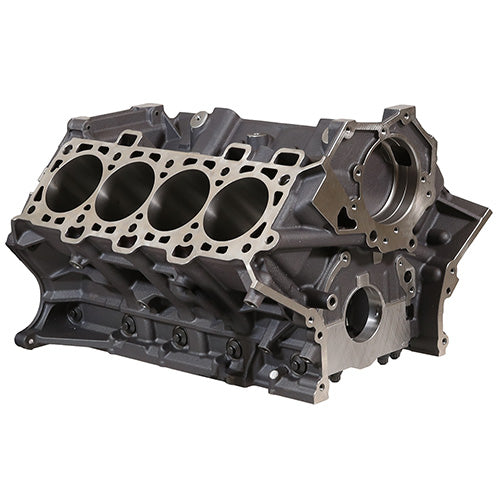

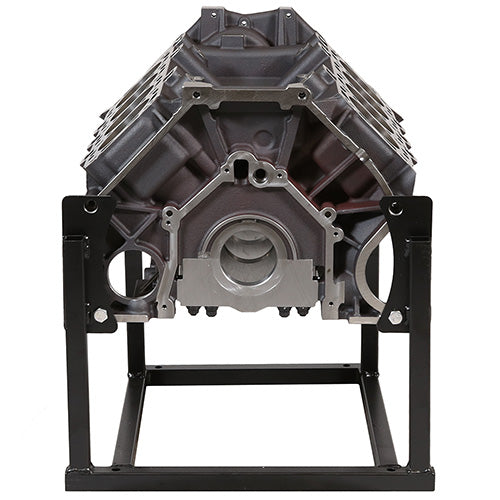

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.
- Deck height: 227 mm (8.937")
- Rough bore can be finished to 93 mm (3.661") GEN 3 size
- Maximum bore: 95.0 mm (3.740")
- Maximum stroke: 99 mm (3.897")
- Maximum displacement: 5.6L
- Standard Coyote 100 mm bore spacing
- Lengthened bores for added strength
- Revised deck design for added strength around the water jackets
- Designed for 12 mm ARP head stud kit 456-4303
- Head bolt holes are NOT machined for the production length head bolts.
- Material available to drill and tap for production length head bolts
- Billet steel 6 bolt main caps with ARP hardware
- Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
- Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
- Requires head gasket to match cylinder head
- Weight = 203# when finished to a 94mm bore
- Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P
Shipping costs and lead times can vary, use the contact form below to confirm order cost and timeframe.
