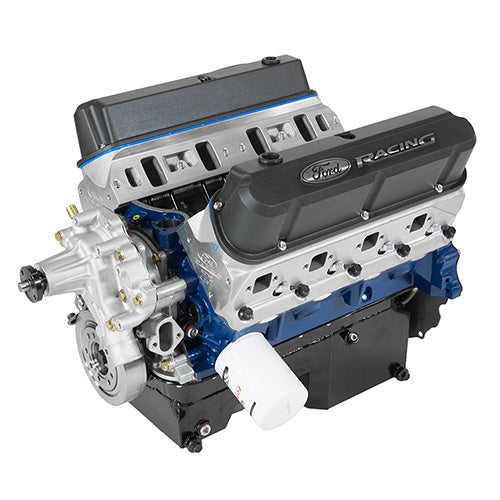

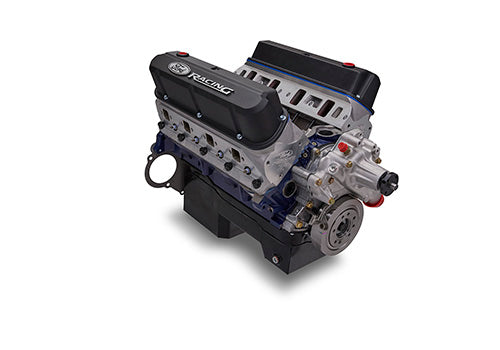

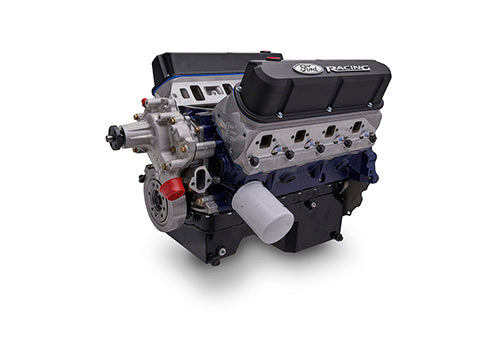

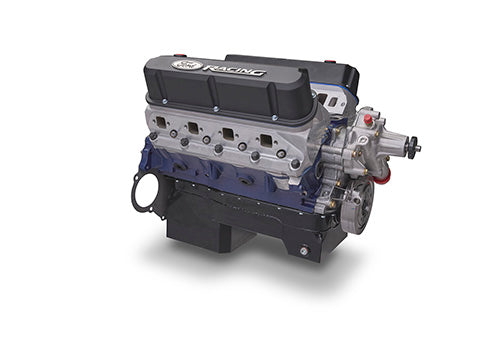

363 CUBIC INCH 507 HP BOSS CRATE ENGINE-Z2 HEADS-REAR SUMP PAN

• 507 HP on Pump Gas - in a 302 Sized package

• Built with the Best All New Parts

• Uses standard SBF Headers and accessory mounts

• From the guys that know Ford Performance Best – Ford Performance Engineers

507 horsepower @ 6500 rpm

450 lb. -ft. torque @ 5100 rpm

Click below to read the Mustang360 story on this engine:

 Crate Expectations: Ford Performance Parts delivers the goods with its new Z2363 crate engines

• Engine type: 302 based small block Ford

• Displacement (cu in): 363

• Bore x stroke (in): 4.125" bore x 3.400" stroke
• Block: Boss 302 8.2 deck M-6010-BOSS302

• Crankshaft: SCAT® Forged Steel

• Connecting rods: SCAT forged steel I-beam connecting rods and ARP® bolts

• Pistons: Forged Mahle® w/ floating wrist pins

• Camshaft type: Hydraulic Roller

• Camshaft lift (in): .580"/.602"

• Camshaft duration (@.050 in): 232°/240°

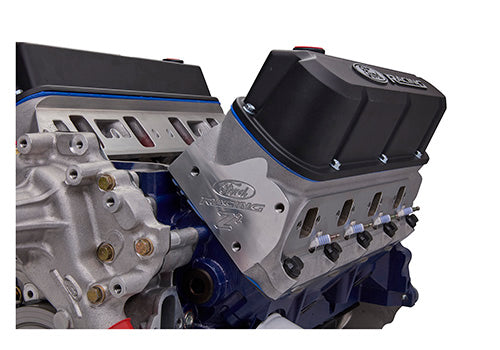

• Cylinder Heads Ford Performance Aluminum "Z2" Cylinder Heads M-6049-Z2

• Valve size (in): 2.05" intake 1.60" exhaust

• Valve Springs: PAC® 1219X Ovate Beehive

• Compression ratio: 10.2:1 (nominal)

• Rocker arms: Roller Rockers – 1.65:1 Ratio

• Vibration Damper:  Ford Performance SFI Approved

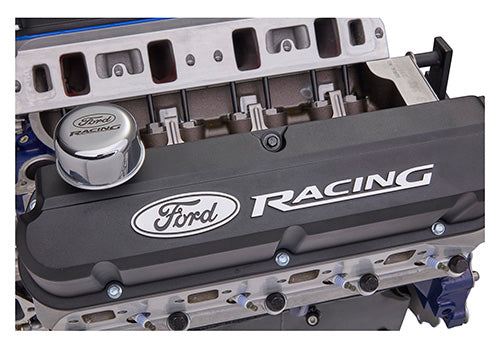

• Valve covers: "Ford Racing" cast aluminum-black 302-135

• Oil pan: high performance 7 quart capacity and windage tray / scraper

• Water pump: Edelbrock® hi-performance

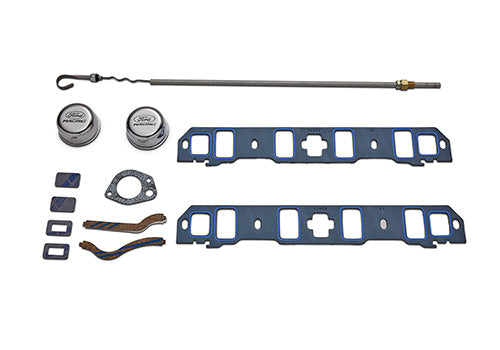

• Includes Ford Performance M-9439-A50 intake manifold gaskets

• Does not include distributor, intake and flywheel

• Required fuel: Premium unleaded

• Built with current available parts. Photo and specs may vary.

• Engine installation tuning tips can be found HERE
• Note: Results obtained using Edelbrock® Super Victor Intake Manifold and 750 cfm carburetor. This combination does not fit all applications
