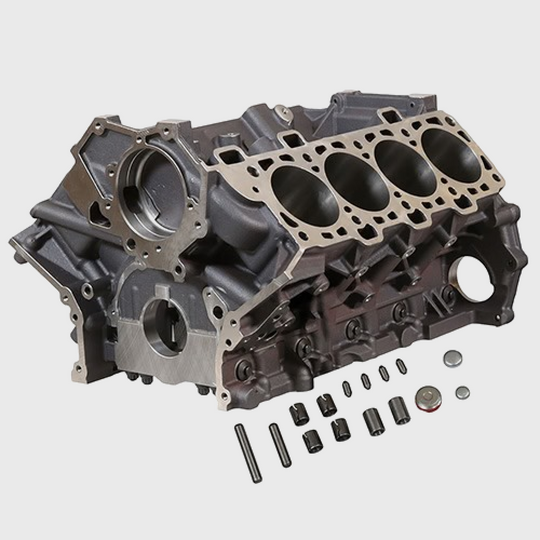

Ford Performance Coyote cast iron engine race block M-6010-M50X with detailed machining and mounting points.
M-6010-M50X

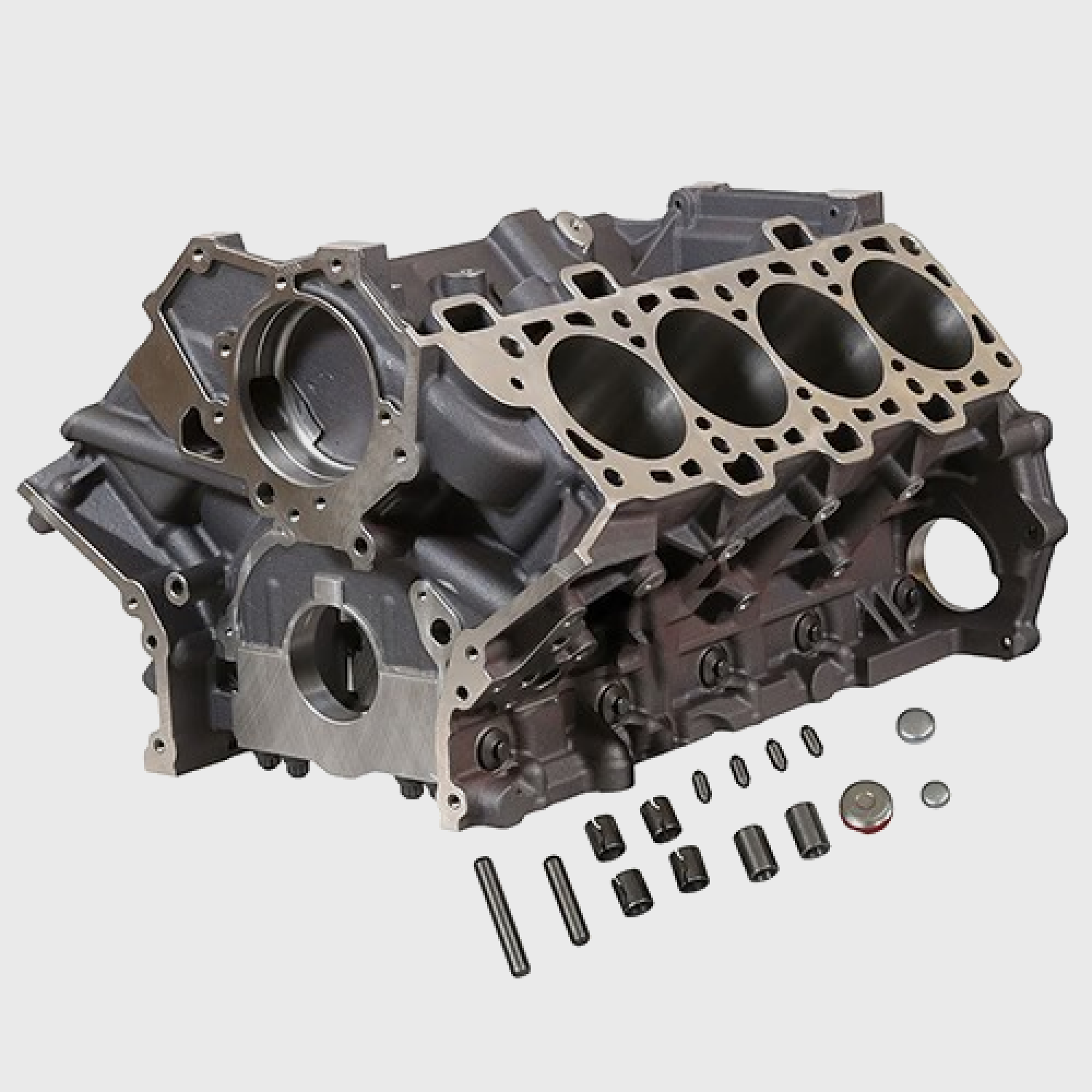

Coyote Cast Iron Race Block M-6010-M50X

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.   ...

$3,534.00$3,999.99

In Stock

  • Clients Trusted
  • 30 Days Return
  • Secure Payment

Pickup available at 9750 Conklin Road

Usually ready in 2-4 days

Proudly Made in the USA

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.



  • Deck height: 227 mm (8.937")
  • Rough bore can be finished to 93 mm (3.661") GEN 3 size
  • Maximum bore: 95.0 mm (3.740")
  • Maximum stroke: 99 mm (3.897")
  • Maximum displacement: 5.6L
  • Standard Coyote 100 mm bore spacing
  • Lengthened bores for added strength
  • Revised deck design for added strength around the water jackets
  • Designed for 12 mm ARP head stud kit 456-4303
  • Head bolt holes are NOT machined for the production length head bolts.
  • Material available to drill and tap for production length head bolts
  • Billet steel 6 bolt main caps with ARP hardware
  • Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
  • Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
  • Requires head gasket to match cylinder head
  • Weight = 203# when finished to a 94mm bore
  • Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P

Shipping costs and lead times can vary, use the contact form below to confirm order cost and time frame.
